Preparation devices
Leica UC7 - Ultramicrotome (2x)
- High-quality ultrathin sectioning
- Thickness feed range from 30 nm to 5 µm
- Cutting speed 0.05 - 100 mm/s
- Fully motorized knife stage
- Improved illumination
- Auto-trim function
- Ergonomic touch screen
- Can be used with the cryochamber Leica FC7 for cryosectioning
CIUS
Leica UC6 - Ultramicrotome
- High-quality ultrathin sectioning
- Thickness feed range from 30 nm to 5 µm
- Cutting speed 0.05 - 100 mm/s
- Fully motorized knife stage
- Improved illumination
CIUS

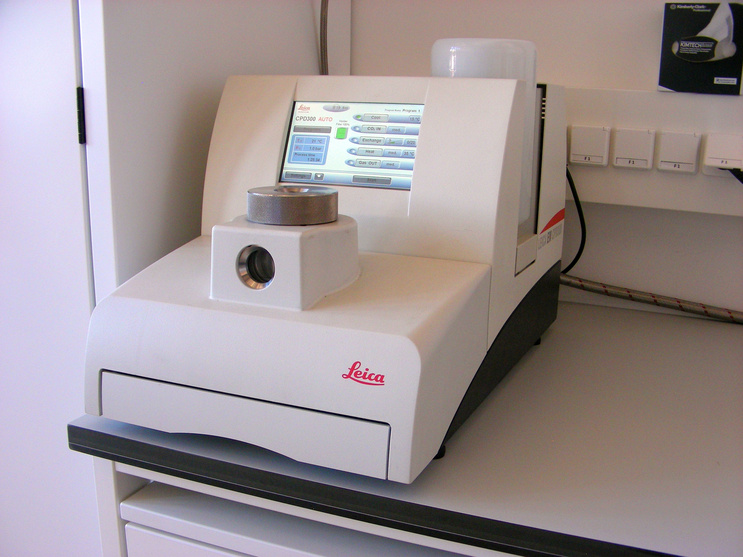

Leica EM CPD300
Drying samples for SEM examination
by replacing the fluid in a specimen with liquid carbon dioxide, which is then brought to its critical point. At this precise point, the liquid converts instantly into gas without surface tension, preserving the delicate microstructure of the sample without structural collapse.
CIUS
Leica EM ACE600
- Produces carbon layers up to 40 nm in thickness, controlled by accurate quartz measurement
- Freely selectable sample rotation
- 3-axis motorized stage control
Leica
JEOL JFC-2300HR
- Deposits a thin, conductive metal layer on SEM samples (e.g., Au, Pt, Cr)
- Processes up to 24 samples in a single run
- Tiltable holder (up to 30°) with planetary rotation for uniform coverage
- Sputtering controlled by time (s) or by measured coating thickness
CIUS
Quorum GloQube
- Hydrophilisation of surfaces (glass slides, TEM grids with or without carbon support films, ...) for better sample spreading → Negative and positive discharge modes possible
- Improved adhesion and orientation of proteins, nucleic acids, nanoparticles and antibodies to support films and substrates
- Intuitive touch screen control
- Fully automatic procedure
CIUS

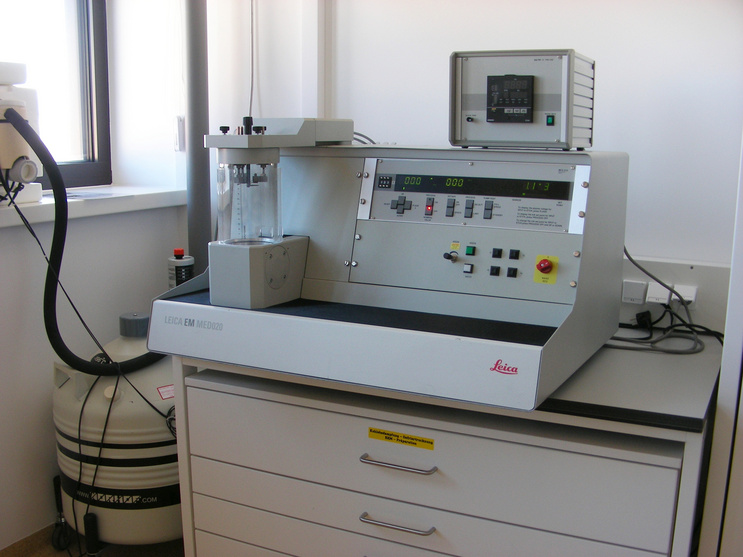

Leica EM MED 020
- Freeze drying under high vacuum conditions (sublimation)
- External LN2 pumping device
- Temperature / time schedules programmable
CIUS
Leica HPM 100
- Vitrification of hydrated samples within milliseconds at 2100 bar
- Sample carriers: 3 or 6 mm in diameter, up to 300 µm in depth
- In combination with a long-distance stereomicroscope for sample dissection and mounting
- Automated sample transfer into LN2
CIUS
Leica EM-CPC
- Immersion cryofixation in liquid propane (or ethane on request)
- Mobile working platform for on-site use
CIUS

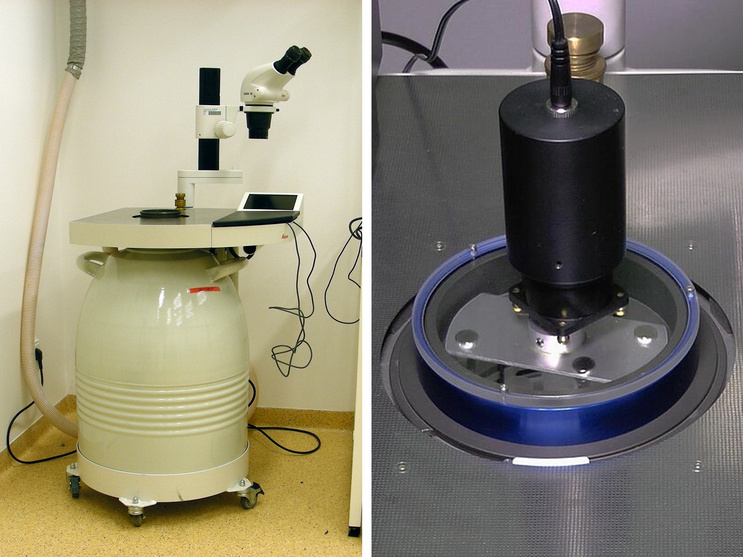

Leica AFS 2
- Automated freeze substitution of frozen-hydrated samples resulting in low-temperature dehydration and fixation
- Temperature / time schedules programmable
- Equipped with an agitation module for accelerated processing
- LED lamp for UV-polymerisation of low-temperature resins (Lowicryls)
CIUS
